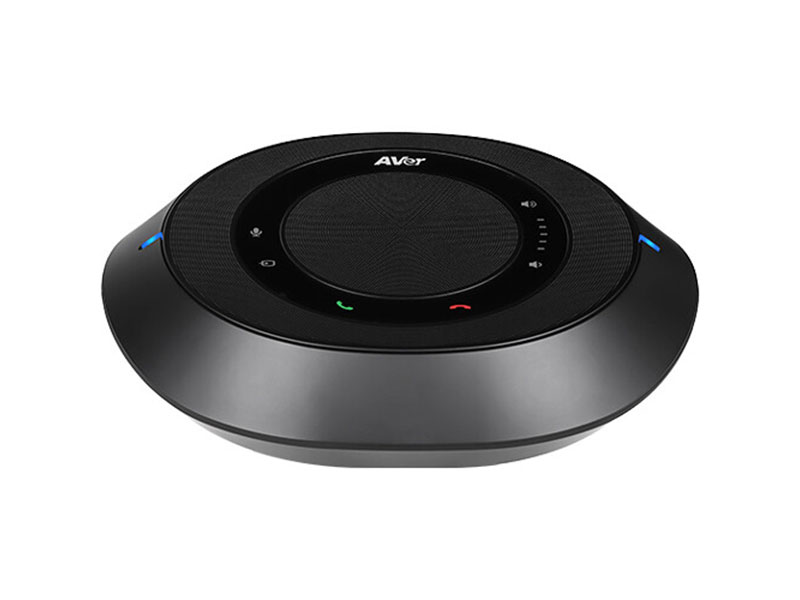

The AVer VC520 PRO Expansion Speakerphone is designed to expand the VC520 PRO Video Conferencing System's microphone pickup range and maximize audio coverage. This full-duplex speakerphone is equipped with a powerful speaker and a mic that picks up voice within 360° at up to 15', giving you configuration flexibility regardless of your room design or seating arrangements in meeting rooms and classrooms.
To avoid crowding around one speakerphone, you can daisy-chain this Expansion Speakerphone to the speakerphone that's included with the VC520 PRO video conferencing system and achieve a 30' voice-pickup radius. For larger spaces, you can also daisy chain a second Expansion Speakerphone for a maximum of three speakerphones and a wide 45' voice-pickup radius.
Full speakerphone control is available on all units within the chain, including mute/unmute, volume up/down, call answer, and call hang-up. A 33' Cat 6 speakerphone cable is included.
Crystal-Clear Audio for Conferencing
The Expansion Speakerphone features full-duplex transmission that's entirely free from sound clipping, allowing for fluid conversation both ways.
The unit is equipped with a two-microphone array that picks up voices evenly in the room with automatic gain control, echo cancellation, and background noise suppression to optimize speech intelligibility.
The 6W speaker provides powerful sound distribution to all participants.
AVer VC520 Pro3Specs
| Connectors |
1 x RJ45 to VC520 PRO Speakerphone
1 x RJ45 to Other Expansion Speakerphone
|
| Microphone |
Dual-Microphone Array
360° Pickup Pattern
15' / 4.6 m Radius
Frequency Response: 120 Hz to 16 kHz
|
| Duplex Mode |
Echo Cancellation, Active Noise Cancellation, Full-Duplex
|
| Speaker Power |
6 W, Adjustable to 90 dB SPL at 1.6' / 0.5 m
|
| Dimensions |
8.7 x 7.1 x 1.9" / 220 x 181.5 x 49.5 mm
|
| Weight |
1.87 lb / 0.85 kg
|
Key Specs
| Built-In Microphone |
Yes
|
| Field of View |
Horizontal: 72.8°
Vertical: 44.1°
Diagonal: 80.5°
|
| IP Streaming |
H.264, RTMP, RTSP: 1080p, 720p, 480p, 360p at 30p, 60p
|
| Video Outputs |
1x USB-B 3.0 / 3.1/3.2 Gen 1 (USB Video) Female
1x RJ45 Female
1x HDMI Female
|
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel / Coaxial (12 VDC at 5 A)
|
Image Sensor
| Image Sensor |
Size-Unspecified CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel (1920 x 1080)
|
Camera
| Precise Scan Rate Control |
No
|
| Max Digital Zoom |
6x
|
| Built-In Microphone |
Yes
|
| IR Cut Filter |
No
|
| Flip / Mirror Support |
Image Flip, Mirror (Vertical)
|
Lens
| Optical Zoom Ratio |
12x
|
| Focal Length |
3.9 to 46.8mm
|
| Field of View |
Horizontal: 72.8°
Vertical: 44.1°
Diagonal: 80.5°
|
| Maximum Aperture |
f/1.6 to 2.8
|
| Minimum Focus Distance |
Wide: 3.3' / 1.0 m
|
| Focus Control |
Autofocus
|
Video Output
| Broadcast System Compatibility |
NTSC
|
| Output Formats |
USB: 1920 x 1080p at 30, 60 fps
1280 x 720p at 30, 60 fps
1600 x 900p at 15, 30 fps
960 x 540p at 15, 30 fps
848 x 480p at 15, 30 fps
800 x 600p at 15, 30 fps
800 x 448p at 15, 30 fps
640 x 360p at 15, 30 fps
424 x 240p at 15, 30 fps
320 x 180p at 15, 30 fps
640 x 480p at 15, 30 fps
480 x 360p at 15, 30 fps
320 x 240p at 15, 30 fps
|
| IP Streaming |
H.264, RTMP, RTSP: 1080p, 720p, 480p, 360p at 30p, 60p
|
Control
| Presets |
10 via IR
|
| Movement Range |
Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
|
| Tally Light |
No
|
| Supported Control Protocols |
IP
IR
Pelco-D
Pelco-P
RS-232
VISCA
|
Interfaces
| Video Outputs |
1x USB-B 3.0 / 3.1/3.2 Gen 1 (USB Video) Female
1x RJ45 Female
1x HDMI Female
|
| Control I/O |
1x Mini-DIN 9-Pin (RS-232, UVC 1.5) Input
|
| Bluetooth |
No
|
System Requirements
| OS Compatibility |
Windows 7 or Later / macOS 10.4 or Later / Chrome OS
|
| OS Compatibility |
Windows 7
Windows 10
Windows 11
macOS 10.4 or Later
Chrome OS 94.0.4606 or Later
|
| Mobile App Compatible |
No
|
| Memory Requirement |
Windows, Mac:
4 GB
|
| CPU Requirement |
3.2 GHz Intel Core i5 (Minimum)
|
Power
| PoE Support |
PoE+ 802.3at
|
| Power I/O |
1x Barrel / Coaxial (12 VDC at 5 A)
|
| Power Consumption |
Power Supply: 100 to 240 VAC
|
General
| Tripod Mounting Thread |
1x 1/4"-20 Female
|
| Operating Conditions |
32 to 104°F / 0 to 40°C at 20 to 80% Humidity
|
| Storage Conditions |
-4 to 140°F / -20 to 60°C at 20 to 80% Humidity
|
| Security Lock Support |
Kensington Lock Slot
|
Physical
| Dimensions |
7.2 x 6 x 5.6" / 182 x 153 x 142.7 mm (Camera)
7.9 x 2 x 0.8" / 200 x 50 x 21 mm (Remote)
|
| Weight |
3.24 lb / 1.47 kg (Camera)
3.2 oz / 90 g (Remote)
|
