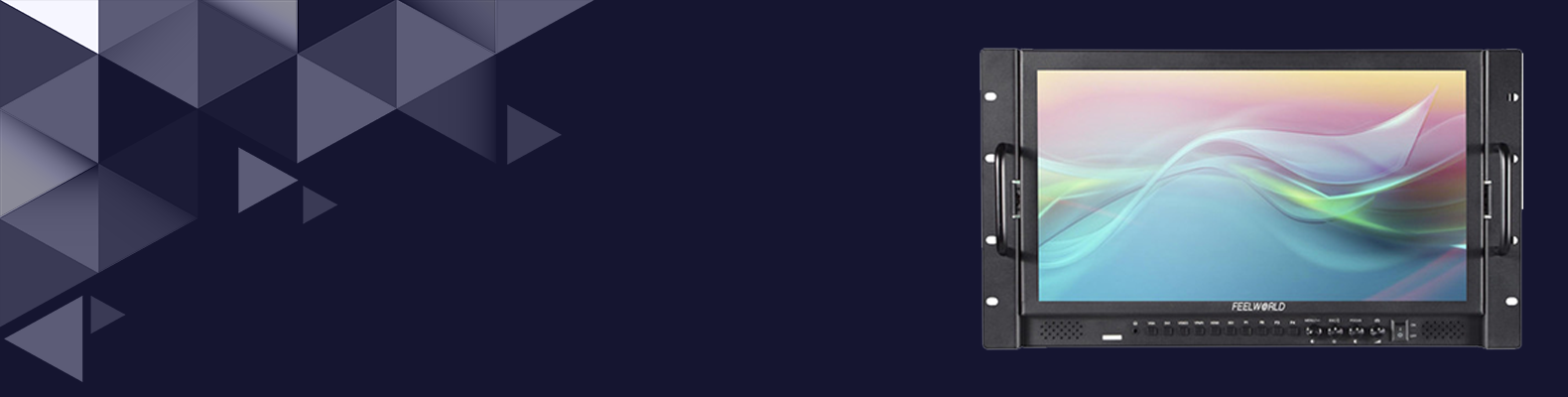

The 17.3" 4K Rackmount Broadcast Monitor from FeelWorld features a 1920 x 1080 display and supports up to UHD 4K30 signals. It offers HDMI, 3G-SDI, and analog inputs and outputs, plus RCA audio inputs and a tally port. These connections are provided on the rear panel along with an integrated V-mount battery plate and 4-pin XLR and barrel power inputs. A headphone jack, built-in speakers, 3-color LED tally light, and control and function buttons are provided on the front. This rackmount version comes with rack ears with built-in handles on the front. The monitor's image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across the four front-panel function buttons.
Key Features
- 1920 x 1080 resolution display
- Supports up to UHD 4K30 signals
- HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
- HDMI, 3G-SDI, component BNC, composite BNC outputs
- 178 / 178° viewing angle
- Color depth: 16.7 million colors
- Tally port
- Built-in red/green/yellow LED tally indicators
- 3.5mm stereo headphone jack
- Built-in speakers
- Integrated V-mount plate
- 300 cd/m² brightness
- 4-pin XLR and DC barrel power ports
Image Analysis Functions
- Peaking focus assist
- Check field
- Camera mode
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, and horizontal and vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
| Display Size |
17.3" / 43.9 cm
|
| Native Resolution |
1920 x 1080
|
| Touchscreen |
No
|
| HDR Support |
No,
|
| Video I/O |
1x HDMI 1.4 Input
1x BNC (3G-SDI) Input
1x 3BNC (Component) Input
1x BNC (Composite) Input
1x DVI-I Single-Link Input
1x HDMI 1.4 Output
1x BNC (3G-SDI) Output
1x 3BNC (Component) Output
1x BNC (Composite) Output
Show More
|
| Media/Memory Card Slot |
No
|
| Video Format |
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
576i
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
Show More
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
26 W (Maximum)
|
Display
| Panel Type |
LCD
|
| Display Size |
17.3" / 43.9 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178°
|
| Touchscreen |
No
|
| Maximum Brightness |
300 nits / cd/m2
|
| Contrast Ratio |
700:1
|
| Dot Pitch |
0.1989 x 0.1989 mm
|
| HDR Support |
No,
|
| Pixels Per Inch (ppi) |
127 ppi
|
| Image Controls |
Check Field, Color Temperature Selection, Image Flip, Screen Markers
|
Inputs / Outputs
| Video I/O |
1x HDMI 1.4 Input
1x BNC (3G-SDI) Input
1x 3BNC (Component) Input
1x BNC (Composite) Input
1x DVI-I Single-Link Input
1x HDMI 1.4 Output
1x BNC (3G-SDI) Output
1x 3BNC (Component) Output
1x BNC (Composite) Output
|
| Embedded Audio |
HDMI
SDI
|
| Audio I/O |
1x 2RCA Input
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker |
2
|
| Power I/O |
1x XLR 4-Pin Input
1x Barrel Input
|
| Other I/O |
1x DE-9/DB-9 (Tally)
|
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
Format Support
| Video Format |
HDMI
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
480p
576i
480i
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
1080PsF: 24/23.98
720p: 60/59.94/50/30/29.97/25/24/23.98
576i
480i
|
Power
| Input Power |
9 to 24 VDC
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
26 W (Maximum)
|
Mounting
Environmental
| Operating Temperature |
22 to 82°F / -10 to 50°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
General
| Dimensions |
16.3 x 11 x 1.4" / 41.4 x 28 x 3.5 cm
|
| Weight |
7.28 lb / 3.3 kg
|
