Power your camera on set and easily recharge with this IDX System Technology 2 x DUO-C98P V-Mount Batteries & VL-2X 2-Channel Charger/Power Supply Kit from B&H. Two 97Wh lithium-ion batteries can sustain your camera rig for an extended period of time via its D-Tap, V-mount, or USB Type-C port. When the batteries run out, the VL-2X charger delivers a quick charging current to both simultaneously.
IDX System Technology DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery
Power your professional V-mount cameras or other professional devices with this DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery from IDX System Technology. Featuring a V-mount, the compact battery is only 1.5" thick, but packs a large 97Wh, 6.6Ah capacity, providing 14.5V to your gear with a 10.5A maximum draw. It is well suited for digital cinema cameras and camera stabilizer systems where long runtimes are required, and its battery data information displays in most cameras' viewfinders.
The DUO-C98P can output power via its V-mount, two D-Tap outputs, and USB Type-C port. One of the D-Tap ports is an Advanced port that can also be used to charge the battery with an optional D-Tap charger such as the UC-PD1. The USB Type-C is also a PD Fast Charging input that allows you to fast-charge the battery using up to 60W.
Designed with battery circuit protection against overcharge, overdischarge, overcurrent, and exposure to high temperatures, it protects your battery from the rigors of production. A 5-LED battery life indicator on its side provides a quick visual indication of the charge state of your battery, and its housing is designed with
Key Features
Suitable for cinema camera productions that need a high-capacity battery in a small package
The battery data displays in the viewfinder system of most cameras, and the addition of an SMBus enables RED cameras to display this information as well
V-Torch light for easy attachment to the plate
Handles up to 10.5A loads
Two unregulated D-Tap accessory outputs at 80W each, one is a D-Tap Advanced input to also charge the battery
USB Type-C output port with 60W PD fast charging input
Battery circuit protection including over-charge, over-discharge, over-current, and over-temperature
5-LED battery life indicator
Fully compatible with all IDX Endura V-mount chargers, as well as the UC-PD1 USB Type-C charger and the VL-DT1 D-Tap charger
Antiviral and antimicrobial body for hygienic peace of mind

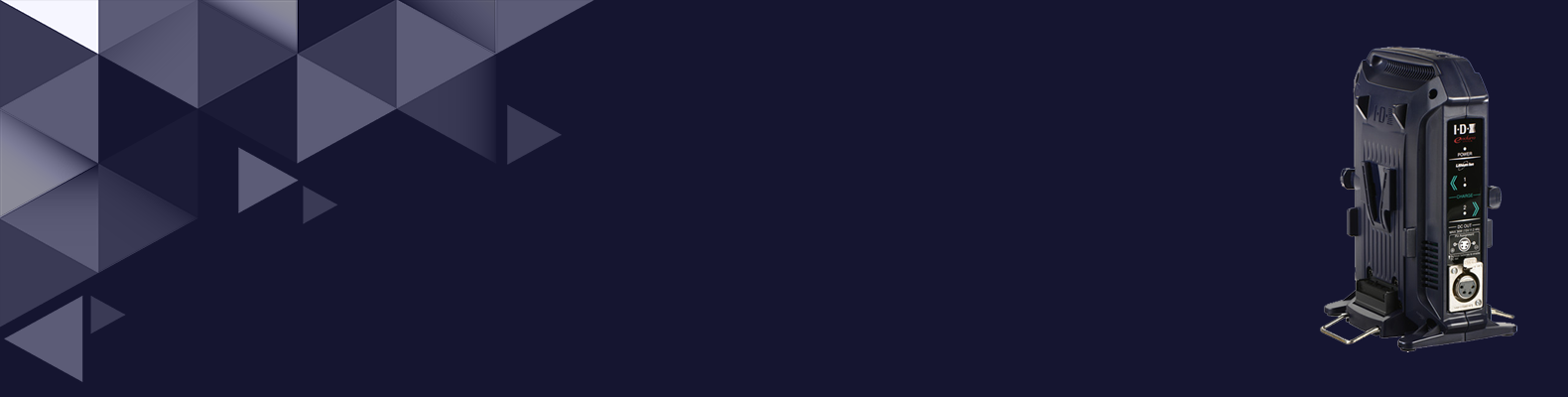

IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply
The VL-2X 2-Channel V-Mount Charger & Power Supply from IDX provides sequential charging for lithium-ion and NiCad batteries, automatically switching to the second battery after fully charging the first. It delivers up to 2.7A of quick-charge current without the noise of a typical charger thanks to a fanless design. It also features a 4-pin XLR power output that offers up to 36W of DC power when the charger is connected to a wall outlet and your batteries are removed. (The DC output is disabled when a battery is charging.)
This portable desktop charger is designed with reliable internal safety features that protect both the battery and charger from damage should faulty or misused batteries be placed on the charger. It will automatically stop charging if any attached battery reaches an overvoltage condition.
Charge Times for Select IDX Batteries
DUO-C190:
7 hours for one / 14 hours for two
DUO-150:
5 hours for one / 10 hours for two
CUE-D150:
5 hours for one / 10 hours for two
ELITE:
4.5 hours for one / 9.4 hours for two
E-HL10DS:
3.4 hours for one / 7.2 hours for two
DUO-C95:
3.4 hours for one / 7.2 hours for two
DUO-95:
3.3 hours for one / 7 hours for two
CUE-D95:
3.3 hours for one / 7 hours for two
E-HL9:
3.2 hours for one / 6.4 hours for two
CUE-D75:
3 hours for one / 6 hours for two
NP-L7S:
3 hours for one / 6 hours for two
IDX System Technology VL-2X 2-Channel V-Mount Charger & Power Supply Specs
Battery Charger
Charger Compatibility |
V-Mount
|
Number of Battery Bays |
2
|
Charger Power Source |
AC to DC Adapter (Included)
|
Charger Power I/O |
1x Barrel/Coax Male Input
• 15 VDC at 4 A
1x XLR 4-Pin Female Output
• 15 VDC at 2.4 A (36 W)
|
Charger Included Adapter / Cable |
1x USA Type-A/B Plug to Barrel/Coax Male AC to DC Adapter
• 100 to 240 VAC, 50 / 60 Hz
|
Dimensions |
7.22 x 5 x 3.44" / 18.34 x 12.7 x 8.74 cm
|
Weight |
0.95 lb / 430 g
|
Environmental
Operating Temperature |
23 to 104°F / -5 to 40°C
|
IDX System Technology DUO-C98P 97Wh High-Load Li-Ion V-Mount Battery Specs
Environmental
Mount / Series Type |
V-Mount
|
Chemistry |
Lithium-Ion
|
Battery Capacity |
6600 mAh / 97 Wh
|
Output Voltage |
14.5 VDC
|
Maximum Load |
115 W, 10 A (Peak)
|
Accessory I/O |
1x D-Tap / P-Tap Input/Output 80 W Regulated
1x D-Tap / P-Tap Output 80 W Regulated
1x USB-C Input/Output 60 W Regulated
|
Maximum Load (Accessory I/O) |
80 W (D-Tap)
60 W (USB-C)
|
USB Output |
5 V, 3 A
|
Storage Temperature |
-4 to 122°F / -20 to 50°C
|
Charging Temperature |
32 to 104°F / 0 to 40°C
|
Discharging Temperature |
-4 to 113°F / -20 to 45°C
|
Dimensions (W x H x D) |
3.74 x 5.75 x 1.54" / 9.5 x 14.61 x 3.91 cm
|
Weight |
1.41 lb / 0.64 kg
|
