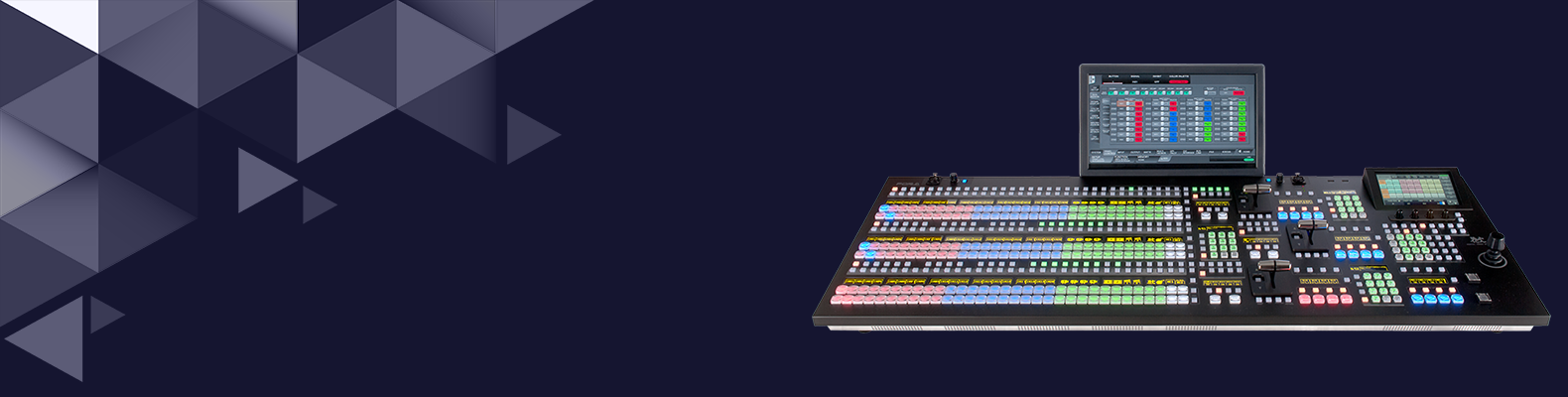

ake the lead in video production with the HVS-2000 3G/HD/SD Two-M/E Video Switcher from For.A, featuring 24 inputs and 18 outputs. This advanced system includes two full mixed effects, each equipped with four keyers. It also integrates a versatile four-FLEXaKEY system, enhancing keying capabilities across mixed effects and the AUX bus system. The AUX bus supports cuts, mixes, wipes, and keys, previewed through four MELite buses.
The HVS-2000 excels in multi-screen staging with independent transitions, keys, and graphics on each display. Its ONStage mode facilitates grouping multiple mix effects for simultaneous control, simplifying transitions across multiple monitors with distinct content. Storage capacity extends to 900 frames on the hard drive, expandable via USB flash drive for additional imagery and configurations.
Key features include up to six M/E capabilities with FLEXaKEY architecture, expandable I/O options, and support for multi-format inputs including 4K via optional software. The switcher offers intuitive operation through a comprehensive control panel, featuring color-coded buttons, a 7" touch panel, and extensive customization options for efficient workflow management.
Specifications
Video Formats |
1080i 59.94/50
1080PsF 29.97/25/24/23.98
720p 59.94/50
525 59.94 (NTSC)
625 50 (PAL)
Optional: 1080p 59.94/50 (Level-A)
|
Video Inputs |
24 x BNC, 75 Ohms (HD-SDI: 1.5 Gb/s; SD-SDI: 270 Mb/s)
Expandable to up to 48 x SDI with 6 x HVS-100DI-A cards (available separately)
|
Video Outputs |
16 x BNC, 75 Ohms (HD-SDI: 1.5 Gb/s; SD-SDI: 270 Mb/s)
2 x HDMI
Expandable to up to 20 x SDI and 2 x HDMI (via separately available expansion cards)
|
Signal Processing |
4:2:2:4, digital component
|
Quantization |
HD/SD-SDI: 10-bit
|
Effects |
Wipe: 100 patterns (modification capability included)
2.5D DVE: 30 patterns or more DVE WIPEs (modification capability included)
|
Transitions |
Fader controller, Auto, or Cut button
Type: Mix or Wipe (DVE included)
|
Still Store |
4 x Channels with 900 frames at 1080 resolution, approx. 30 sec at 1080i
Expandable to up to six channels with 1800 frames at 1080 resolution, approx. 1 minute at 1080i (expansion cards available separately)
|
Multiviewer |
2 x Channels, expandable to four channels (64 windows) via expansion cards (available separately)
2/4/5/7/9/10/11/13/16-way split views with title, tally, audio level meter, safety area, and border display
|
Processing Amplifier |
On all inputs/outputs
|
Color Correction |
4 x Channels (two channels per M/E)
Expandable to up to 12 channels via expansion cards (available separately)
Correction Mode: Balance, differential, and sepia
Clip Mode: YPbPr, RGB
|
Event Memory |
100 events (cross-fade transition available when loading events)
|
Macros |
100 Macros:
00 to 89: 30 actions max.
90 to 99: 300 actions max.
|
Genlock Input |
1 x BNC, loop-through, 75 Ohms (to be terminated with 75-Ohm terminator if unused)
BB NTSC: 0.429 Vpp
BB PAL: 0.45 Vpp
Tri-level Sync: 0.6 Vpp
|
System Phase Adjust |
Horizontal: -1/2 H to 1/2 H
|
Genlock Output |
1 x BNC, 75 Ohms
BB NTSC: 0.429 Vpp
BB PAL: 0.45 Vpp
Tri-Level Sync: 0.6 Vpp
|
I/O Delay |
HD: 1 H min.
SD: 1.7 H min.
1 to 2 frames + minimum delay (when FS or resize engine used)
2 to 3 frames + minimum delay (when FS or resize engine plus DVE used)
3 to 4 frames + minimum delay (when FS or resize engine plus output resize engine plus DVE used)
|
Interface |
2 x RJ45, LAN 1 100BASE-TX, LAN 2 1000BASE-T
GPI IN: 15-pin D-Sub female for 10 inputs
GPI In / Tally Out: 25-pin D-Sub female for 20 outputs
6 x RS-422, 9-pin D-Sub female, for tally
1 x BNC loop-through, 75 Ohms
Expansion cards with additional interfaces available separately
|
Operating Temperature |
41 to 104°F / 5 to 40°C
|
Humidity |
30 to 90%, non-condensing
|
Power Requirements |
100 to 240 VAC ±10%, 50/60 Hz
|
Power Consumption |
At 100 to 120 V: 496 W
At 220 to 240 V: 476 W
|
Dimensions |
16.9 x 7.0 x 19.7" / 43.0 x 17.7 x 50.0 cm
|
Weight |
39.7 lb / 18 kg
|
