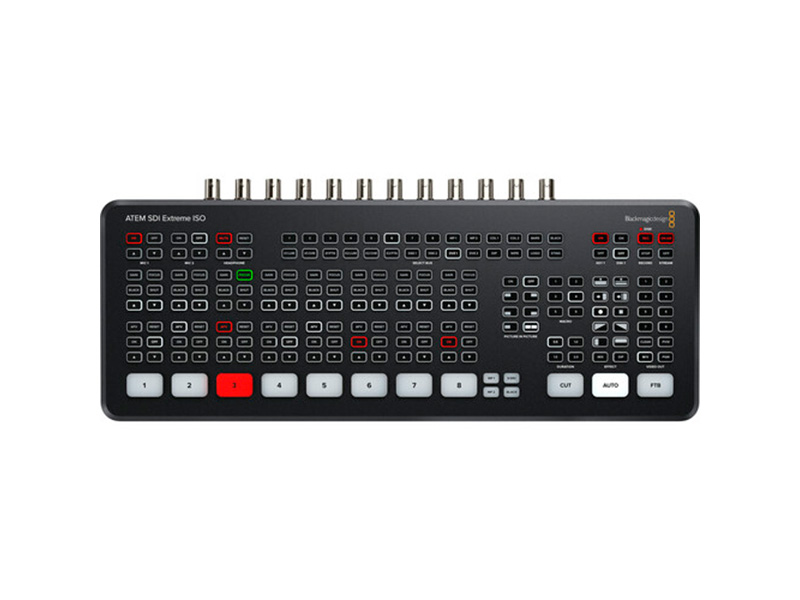

The Blackmagic Design ATEM SDI Extreme ISO Switcher is an 8-input live production switcher for live streaming. It features an integrated control panel and has advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB Type-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent 3G-SDI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.
Call for Best Price
Specifications - Blackmagic Design ATEM SDI Extreme ISO Switcher
Blackmagic Design ATEM SDI ExtremeSpecs
Available M/E Layers
9 M/E
Effect Types
DVE, Transition, Chroma Key, Luma Key
Generators
5x Pattern
2x Color
Audio Mixing
2-Channel Mixing
Processing
Switching Type
IR Remote, Pushbutton, Software
Input
Number of Video Input Sources
8
Video Inputs
8x BNC (3G-SDI)
Input Video Format
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 56/59.94/60 fps
720p at 50/59.94/60 fps
Audio Inputs
2x 1/8" / 3.5 mm TRS Stereo Analog Female
Input Audio Format
Analog
Embedded Audio Input
SDI: 2-Channel (per Input)
Output
Video Output Channels
6

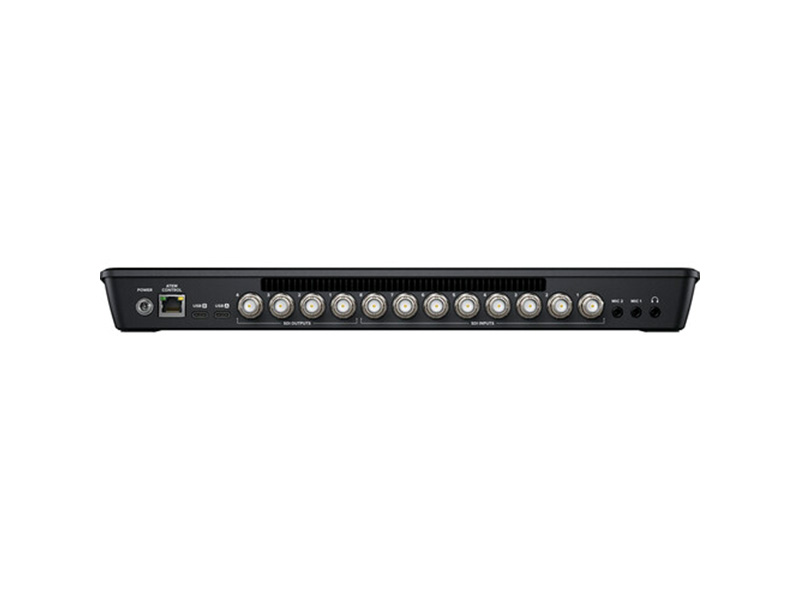

Video Outputs
4x BNC (3G-SDI) (Program)
2x USB-C
Output Video Format
SDI (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
Audio Outputs
1x 1/8" / 3.5 mm TRS Analog
Output Audio Format
Analog
Embedded Audio Output
SDI: 2-Channel (per Output)
Multiview Output
Yes
Connectivity
Other I/O
1x RJ45 Control Input/Output
HDCP Support
No
IP Video
1920 x 1080 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p Encoding
Hardware
Operating System
macOS, Windows 10 Home, Windows 11 Home
OS Compatibility
macOS 11 or Later / Windows 10 or Later
OS Compatibility
macOS 11
macOS 12 or Later
Windows 10
Windows 11
Processor
Not Specified by Manufacturer
Wi-Fi
No
Bluetooth
No
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
Device: 36 W
General
Operating Conditions
37 to 72°F / 5 to 40°C up to 90% Humidity
Storage Conditions
14 to 140°F / -10 to 60°C
Dimensions
14.56 x 5.94 x 1.56" / 36.98 x 15.09 x 3.96 cm
Weight
3.13 lb / 1.42 kg
Packaging Info
Package Weight
4.98 lb
Box Dimensions (LxWxH)
21.1 x 10.7 x 2.6"
